Η Hana SL ειναι κεφαλη κινητου πηνιου , χαμηλης εξοδου (low output), με διαμαντι nude shibata. Εξοδος 0.5mV.
Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

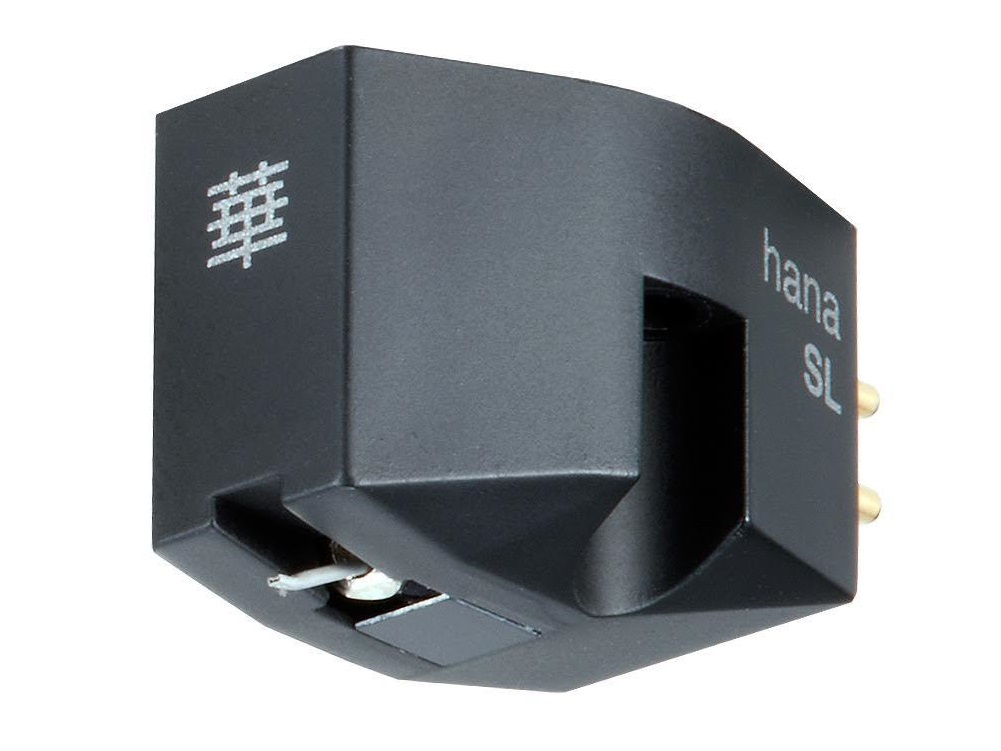

The Hana SL is the most reviewed and awarded Hana cartridge to date. It is distinguished by its black body and a Shibata stylus expertly mounted to its aluminum cantilever. The Hana SL features tighter channel balance, greater channel separation, and improved high-frequency extension.
Specifications
Comparison Table
MODEL
|
EH
|
EL
|
SH
|
SL
|
Stylus Type |
Elliptical
|
Elliptical
|
Nude Shibata
|
Nude Shibata
|
Cantilever Type |
Aluminum
|
Aluminum
|
Aluminum
|
Aluminum
|
Output Voltage |
2.0mV
|
0.5mV
|
2.0mV
|
0.5mV
|
Channel Separation |
25dB@1kHz
|
25dB@1kHz
|
28dB@1kHz
|
28dB@1kHz
|
Channel Balance |
<2dB@1kHz
|
<2dB@1kHz
|
<1.5dB@1kHz
|
<1.5dB@1kHz
|
Recommended Tracking Force |
2.0 Grams
|
2.0 Grams
|
2.0 Grams
|
2.0 Grams
|
Frequency Response |
15 – 25000Hz
|
15 – 25000Hz
|
15 – 32000Hz
|
15 – 32000Hz
|
Internal Impedance In Ohms |
130@1kHz
|
30@1kHz
|
130@1kHz
|
30@1kHz
|
Recommended Resistive Loading |
47k Ohms
|
>400 Ohms
|
47k Ohms
|
>400 Ohms
|
Weight |
5.0 Grams
|
5.0 Grams
|
5.0 Grams
|
5.0 Grams
|
Body Color |
Moss Green
|
Moss Green
|
Black
|
Black
|
