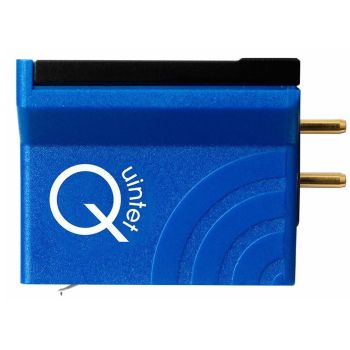

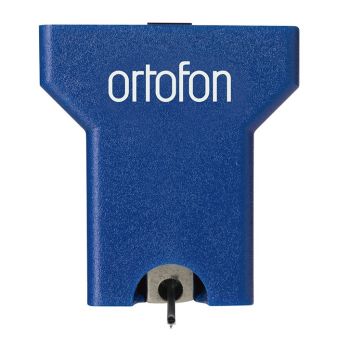

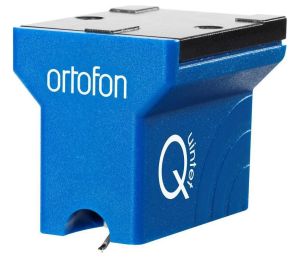

Η Ortofon MC Quintet Blue ειναι κεφαλη κινητου πηνιου χαμηλης εξοδου 0.5mV (low output moving coil 0.5mV).

Δυνατοτητα δοσεων.

The Quintet Blue's sound image will tend to more smooth reproduction compared to Quintet Red and moderate dynamic strength compared to Quintet Bronze.

It features a Nude Elliptical diamond mounted on an aluminium cantilever.

Specifications

• Output voltage at 1 kHz 5 cm/sec - 0.5 mV
• Channel balance - < 1.5 dB
• Channel separation at 1 kHz - > 21 dB
• Channel separation at 15 kHz - > 14 dB
• Frequency range at -3 dB - 20-25.000 Hz
• Frequency response 20-20.000 Hz - +/-2.5 dB
• Tracking ability at 315 Hz at recommended tracking force *) - 70 μm
• Compliance, dynamic, lateral - 15 μm/mN
• Stylus type - Nude Elliptical
• Stylus tip radius - r/R 8/18 μm
• Tracking force range - 2.1-2.5 g (21-25 mN)
• Tracking force recommended - 2.3 g (23 mN)
• Tracking angle - 20º
• Internal impedance, DC resistance - 7 Ohm
• Recommended load impedance - >20 Ohm
• Cartridge body material - ABS/Aluminium
• Coil wire material - Pure 4-nines copper
• Cartridge colour - Blue
• Cartridge weight - 9 g

Compatibility with Rega brand TT/TA:

• REGA brand cartridges’ height from stylus tip to the top cartridge mounting surface is lower than standard. Therefore you would need spacers to ensure the correct set-up of the Ortofon cartridge. Please read about cartridge set-up and alignment on tonearm on our FAQ.
• Adjusting the height of your Rega tonearm is easy with Acoustic Signature's Spacer Set. It allows you to adjust the height from 0.5 mm to 3.5 mm in precise steps of 0.5 mm - without removing the tone arm. Simply loosen the screws, insert the AS-spacer, then lock the screws back down, and you're tonearm is ready to play.
• 3.2 - 4 mm spacers should be enough for Quintet cartridge.

Download the MC Quintet series userguide

Download the MC Quintet series brochure
