Το Musical Fidelity MX-VYNL ειναι προενισχυτης για κεφαλες ΜΜ και MC. Διαθετει fully balanced εισοδους και εξοδους με βυσματα XLR.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

The MX-VYNL is a fully balanced, very high performance phono stage, able to operate with virtually any moving coil or moving magnet cartridge. With both traditional RCA inputs and our unique XLR fully balanced connection the MX-VYNL can be connected to 2 turntables simultaneously.

The MX-VNYL offers a wide range of input impedance settings for moving coil cartridges as well as several capacitance settings for moving magnet units. Unlike many of our competitors units the MX-VYNL allows easy adjustment of these settings while playing. This allows easy experimentation and tuning to find the optimum setting for all your equipment.

The MX-VYNL also includes our renowned RIAA correction that offers extremely accurate results to beyond 80kHz. That may sound extreme, but there is a good deal of information above 20 kHz that needs correction. If it isn’t corrected, it will show itself as ringing and overshoot.

With both extraordinarily low noise and exceptional overload margin the MX-VYNL can comfortably handle even the most demanding of cartridges and satisfy the most discerning of listeners.

Features

• Fully balanced XLR and traditional RCA inputs
• Fully balanced XLR and traditional RCA outputs
• Fully isolated inputs allow for switching between two turntables at once
• Adjustable input impedance on MC whilst it is playing
• Adjustable capacitance on MM whilst it is playing
• Very wide overload margin
• Accurate RIAA to beyond 80kHz
• Incredible noise ratio
• Low impedance output
• State of the art SMD technology
• Beautiful aesthetics and build quality

Specifications

Output

• 4 Volts RMS single ended from RCA sockets
• 8 Volts RMS balanced from XLR sockets

Performance

• Frequency response: RIAA ±0.1dB IEC ±0.1dB

MM:

• Channel separation: < -86dB
• SNR A-wtd: < -101dB
• THD: < 0.007%
• XLR input: 5mV / 2.5mV selectable
• 70mV max (23dB headroom)

MC:

• Channel separation: < -83dB
• SNR A-wtd: < -98dB
• THD: < 0.01%
• XLR input: 0.8mV / 0.4mV selectable, 12mV max (24dB headroom)

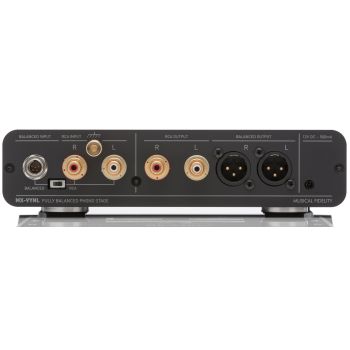

Inputs

• Balanced Mini-XLR
• RCA 1 pair RCA sockets

Outputs

• Balanced XLR male sockets EIA Standard RS-297-A
• RCA 1 pair RCA sockets

Power

• Connector: 1.3mm pin DC power jack
• Outboard power supply: 12V/500mA DC
• Mains voltages 100-240VAC 50-60Hz universal worldwide supply
• Consumption < 8 watts

Weight

• Weight (unpacked / packed): 1.9Kg / 2.4 Kg

Dimensions

• Width 220 mm
• Height (including feet) 53 mm
• Depth (front to back) 215 mm

Included accessories

• Mains adaptor
• Manual
