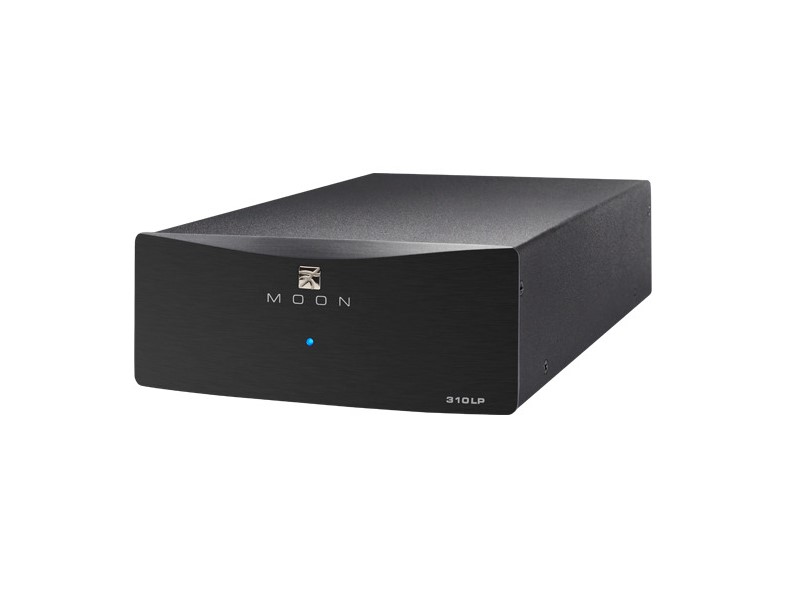

Το SimAudio Moon-310Lp ειναι balanced phono stage MM και MC. Διαθετει παραμετροποιησεις RIAA curve αντιστασης, χωρητικοτητας και κερδους (load, capacitance, gain).

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

Features

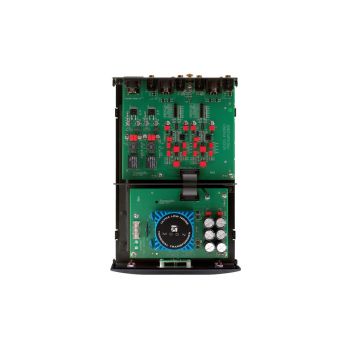

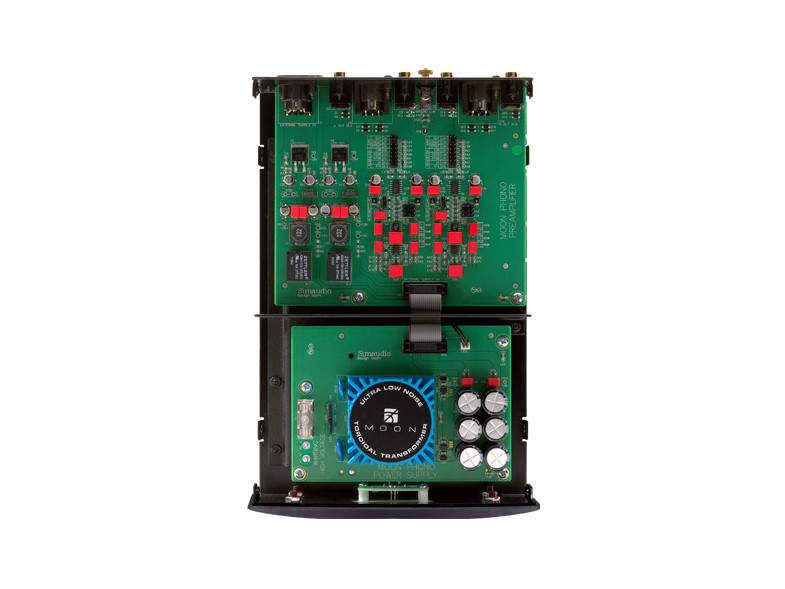

• Large isolated power supply on a separate circuit board using a toroidal transformer with 2 stages of voltage regulation.

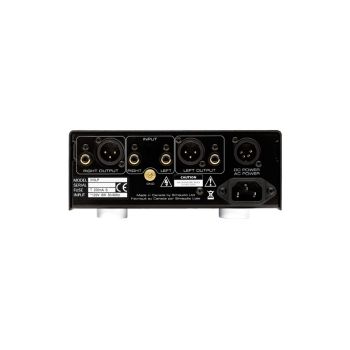

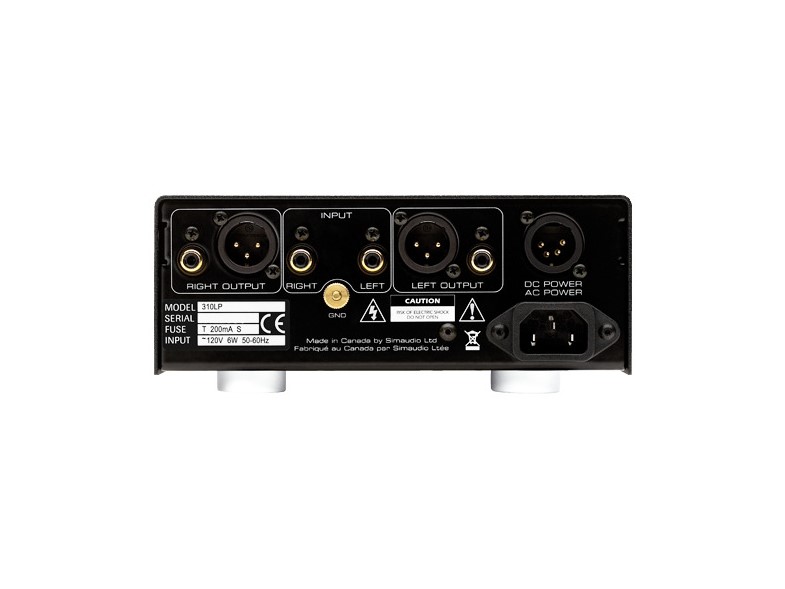

• Single-ended RCA and Balanced XLR output connectors.
• Can be driven with a compatible external power supply.
• Power supply voltage regulation includes i 2 DCf (Indepen dent Inductive DC Filtering); 1 inductor for each and every IC in the audio circuit’s signal path – 2 stages in all.
• Power supply features custom MOON electrolytic capacitors.
• 4-Layer printed circuit boards with pure copper tracings for a much shorter signal path; this results in greater sonic accuracy and dramatically improved signal-to-noise ratio.
• A symmetrical circuit design with accurate matching of the very finest high quality electronic components.

Specifications

• Configuration Mirror-image symmetrical circuit
• Single-ended inputs 1 pair (RCA)
• Input Impedance - Adjustable 47, 100, 470, 1k, and 47kΩ
• Input Capacitance - Adjustable 0, 100, and 470 pF
• Gain – Adjustable (for single-ended outputs) 40, 54, 60 and 66dB
• Gain – Adjustable (for balanced outputs) 46, 60, 66 and 72dB
• Single-ended outputs 1 pair (RCA)
• Balanced outputs 1 pair (XLR)
• Input overload @ 40 / 54 / 60 / 66dB gain 58 / 11 / 6 / 3 mV RMS
• Signal-to-noise Ratio (full scale @40dB gain) 110dBr
• Signal-to-noise Ratio (full scale @66dB gain) 88dBr
• Frequency Response – RIAA & IEC Curve 20Hz - 20kHz (±0.5dB)
• IEC Curve Effect -7dB @ 10Hz
• Crosstalk @ 1kHz 100dB
• Intermodulation Distortion 0.009%
• THD (20Hz - 20kHz) 0.001%
• Power Consumption @ idle 6 W
• AC Power Requirements 240V / 50Hz
• Shipping Weight 3 kg
• Dimensions (W x H x D, cm) 17.8 x 7.6 x 28.0

In the Box

• AC mains
• Stick for under-panel dipswitches settings
• Warranty and product registration information (USA and Canada only)
