Η Audio-Technica AT-33Sa ειναι κεφαλη κινητου πηνιου (Dual Moving Coil), χαμηλης εξοδου, με βελονα shibata. Εξοδος 0.4mV

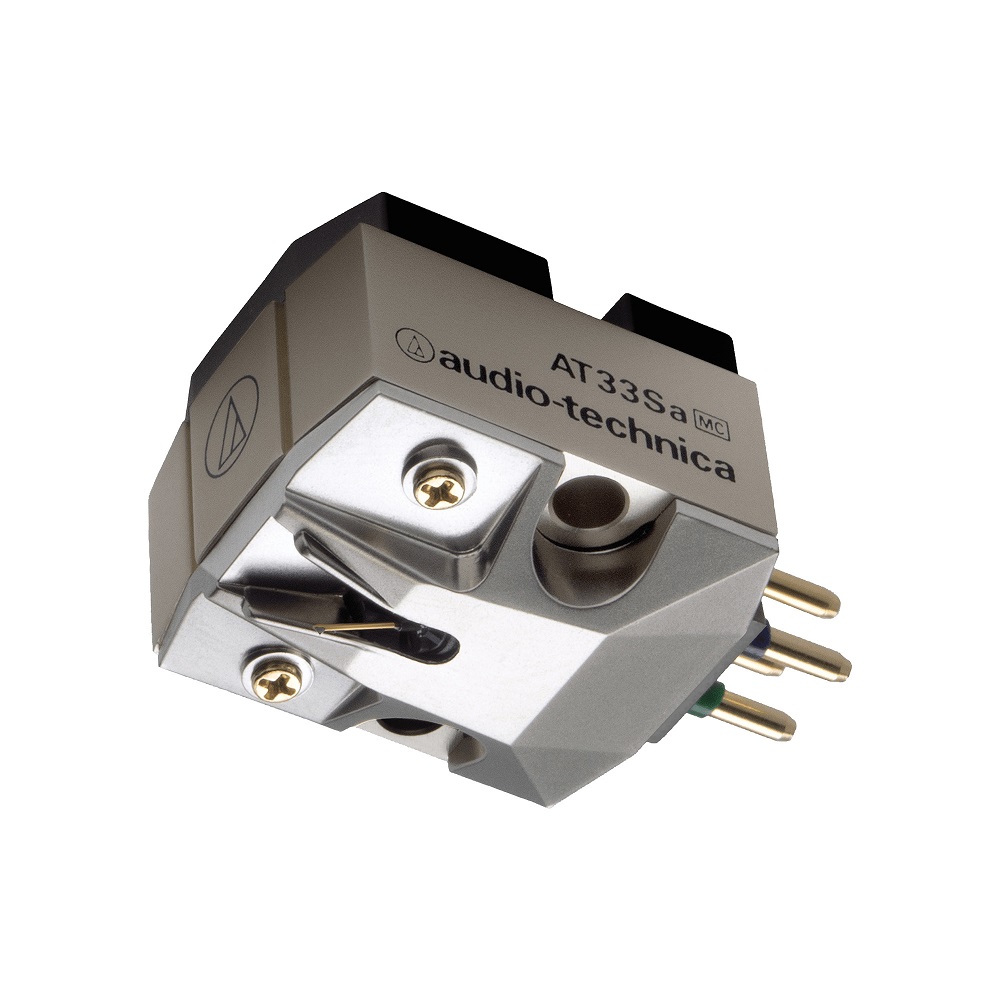

The AT33Sa is the first Audio-Technica moving coil cartridge to feature a Shibata line-contact stylus, known for its superior high-range performance and strong mid and bass sound. The stylus is mounted on a tapered boron cantilever with a double damper for reduced weight and better audio quality. The cartridge’s dual moving coils provide excellent channel separation and are affixed within a strong but lightweight VC mold to greatly reduce unwanted vibration. The cartridge uses a neodymium magnet and a permendur yoke for dramatically enhanced magnetic energy. The PCOCC (Pure Copper by Ohno Continuous Casting) coils ensure pure audio transmission.

Specifications

• Frequency Response     15 - 50,000Hz
• Channel Separation     30dB (1kHz)
• Vertical Tracking Angle     23°
• Vertical Tracking Force     1.8 to 2.2 g (standard 2.0 g)
• Stylus Construction     Nude square shank
• Recommended Load Impedance     Min 100Ω
• Coil Impedance     10Ω (1kHz)
• DC Resistance     10Ω
• Coil Inductance     22 µm (1kHz)
• Output Voltage     0.4mV (1kHz and 5cm/sec.)
• Output Channel Balance     0.5dB (1kHz)
• Stylus Shape     Shibata
• Cantilever     Nude tapered boron
• Static Compliance     40×10-6cm/dyne
• Dynamic Compliance     10×10-6cm/dyne (100Hz)
• Mounting     1/2” centers
• Dimensions     H16×W16.6×D26.5mm
• Accessories Included     1 non magnetic screw driver; 1 brush; 2 washers; 2 Nuts; 2 x 19 mm mounting screws; 1 plastic protector; 1 set of PCOCC Lead Wires (AT6101)
• Body Material     Aluminium/Synthetic Resin
• Stylus Curvature Radius     Shibata
• Type     Dual Moving Coil
• Weight     6.9g
