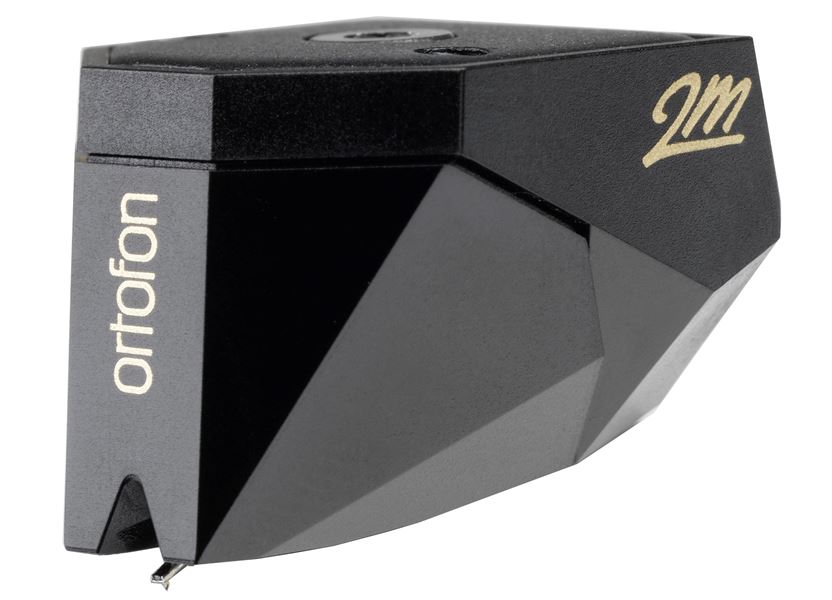

Η Ortofon 2M Black ειναι κεφαλη κινητου μαγνητη (ΜΜ) με Shibata διαμορφωση διαμαντιου και εξοδο 5mV..

Δυνατοτητα δοσεων.

Features

• The 2M Black is graced with a Shibata diamond which slim, highly polished profile allows an exceedingly wide contact area to the groove walls and ensures notably detailed reproduction throughout the spectrum, including even the most high frequency groove information.
• The cartridge body is manufactured from Hopelex, an environment-friendly material which ensures high rigidity while eliminating unwanted resonances.
• The 2M Black uses a special upgraded engine, featuring split pole pins with a silver plated copper wire.

Specifications:

• Output voltage at 1000 Hz, 5cm/sec.  -  5 mV
• Channel balance at 1 kHz  -  1 dB
• Channel separation at 1 kHz  -  26 dB
• Channel separation at 15 kHz  -  15 dB
• Frequency range at - 3dB  -  20-31.000 Hz
• Frequency response  -  20-20.000 + 2 / - 0 dB
• Tracking ability at 315Hz at recommended tracking force  -  80 µm
• Compliance, dynamic, lateral  -  22 µm/mN
• Stylus type  -  Nude Shibata
• Stylus tip radius  -  r/R 6/50 µm
• Tracking force range  -  1.4-1.7 g (14-17 mN)
• Tracking force, recommended  - 1.5 g (15 mN)
• Tracking angle  -  20°
• Internal impedance, DC resistance  -  1.2 kOhm
• Internal inductance  -  630 mH
• Recommended load resistance  -  47 kOhm
• Recommended load capacitance  -  150-300 pF
• Cartridge colour, body/stylus  -  Black/Black
• Cartridge weight  -  7.2 g

Replacement stylus unit  -  2M Black (interchangeable with 2M Bronze)
Stylus lifetime: with proper care we find that up to 1000 hours is possible without degradation of performance. Please read about stylus care on our FAQ.

The 2M Series' engines, coils and magnets configurations are not identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78. Likewise, 2M series styli are interchangeable within the below combinations:
- 2M Red, 2M Blue and 2M Silver
- 2M Bronze and 2M Black
- 2M Mono and 2M 78

Download the 2M series userguide

Download the 2M series brochure
