To VDH MCS-150M x4 ειναι 4 μονα καλωδια για αντικατασταση καλωδιωσης βραχιονα. Το καθενα ειναι κατασκευασμενο απο 7 strands καθαρου ασημιου. Οι τιμες αφορουν μηκος 4 καλωδιων.

Features

• This is the very flexible 7 strand version of the MCS - 150 S.
• The MCS - 150 M consists of 7 individually insulated very pure Matched Crystal Silver strands each 80 micron in diameter incl. insulation.
• Being less susceptible to bending damage, its thinner extruded strands give this multistrand version even a better sound quality compared to the MCS - 150 S.

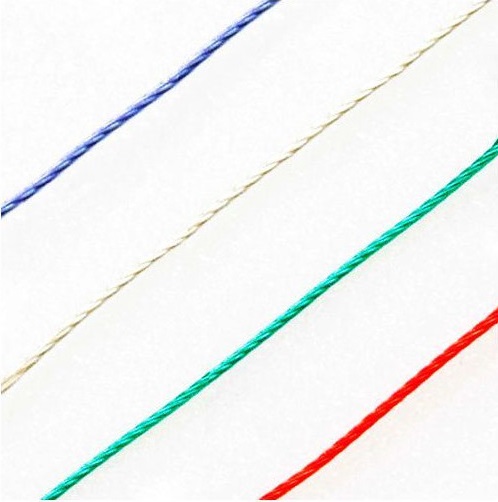

• The transparent and directly solderable coating is available in 4 colours: transparent, blue, red and green.
• The external diameter is 250 micron.
• The insulation acts as a flux during the soldering.
• The maximum mechanical tension the MCS - 150 M can handle is 36 gram. The maximum temperature handling is 180 °C (= 356 °F).
• Typical application of the MCS - 150 M is tone-arm wire of the finest quality.
• Twisting 4 lengths of The MCS - 150 M together (with clockwise conductor wiring +-+- = starquad) will produce one of the finest interconnects you can think of.
• Also as internal wiring in pre and power amplifiers, the MCS - 150 M is the best choice.
• The sound character is extremely smooth with a lot of very fine detail. Typically a non metallic sound.

Specifications

• Cable Type:     Single wire, multistrand
• Conductor Material:     High purity dense Matched Crystal Silver
• Application Area(s):     Tone-arm wiring; Internal (pre-)amplifier (re-)wiring; DIY interconnects
• Eff. Conductor Ø/Eq. AWG No./Strands:     0.0175 mm² / AWG 34.6 / 7
• External Diameter:    0.25 mm.
• Resistance 20 °C:     90.7 Ohm/100 m.
• Insulation / Dielectric Strength / Test Voltage:     Nylon-Polyurethane / 100 Vrms min.
• Connector Types Suitable:     Tone-arm: Our headshell wire connecting clips type CC - 1.0 and CC - 1.2; For a DIY interconnect our C - 4.0 RCA type connector is applicable
• Jacket Colours Available:     Red, Green, Blue and Transparent
• Remarks:     Direct solderable; Stripping is not required; The insulation works as a solder flux
