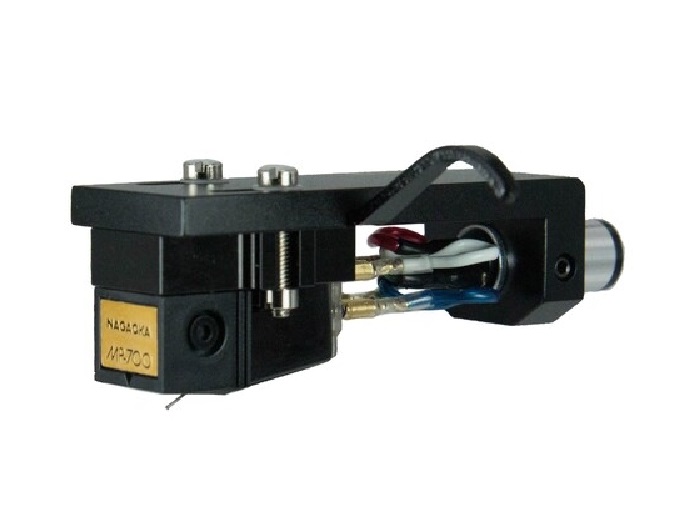

Η Nagaoka MP-700H ειναι κεφαλη κινητου σιδηρου MI (Moving Iron), διπλου μαγνητη, με ελλειπτικη βελονα. Ερχεται προτοποθετημενη σε headshell και headshell cables. Εξοδος 4mV.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

The MP-700 is the crystallization of Nagaoka's technology and passion over its 85-year history.

Features

1. Addition of magnetic flux induction plate inside the cartridge
By adding a magnetic flux induction plate, the flow of magnetic flux in the magnetic circuit is made more efficient. The amount of magnetic flux around the permalloy at the rear end of the cantilever has been increased, improving sensitivity to weak vibrations. This makes it possible to capture a wide range of subtle sounds that support spatial expression, and the sound image and positioning become even clearer. Please look forward to the new acoustic experience brought about by the evolution of the cartridge structure.

2. "3-layer" surface treatment achieves both durability and beauty
The cart frame is made of ultra-super duralumin. In addition, by applying a three-layer surface treatment (nickel plating, black tin plating, and insulating coating) to the cart frame and shielding case, we have suppressed the intrusion of static electricity and achieved quietness and stability of sound quality by reducing noise.
It also has heat resistance, abrasion resistance, and chemical resistance, and maintains its beauty for a long time.

3. Clear sound contours and stability created by "tension wire" and "microridge needle"
Three years of research and technology have led to the adoption of the first tension wire structure in the MP series. It suppresses the effects of needle pressure changes caused by warping and distortion of the record, increases tracing stability, and more clearly depicts the contours of each frequency band.

Specifications

• Output Voltage (1kHz, 5cm/sec): 4 mV
• Frequency Response: 20-27,000 Hz
• Channel Separation (1kHz): 30 dB
• Channel Balance (1kHz): 1.0 dB or less
• Recommended Load Impedance: 47 KΩ
• Recommended Load Capacitance: 100 pF
• Vertical Tracking Force: 1.4 g
• Cantilever: Boron
• Stylus Tip: Micro-ridge Naked Diamond
• Cartridge Weight: 8.0 g
• Cartridge & Headshell Weight: 26.3 g
• Replacement Stylus: JN-P700
